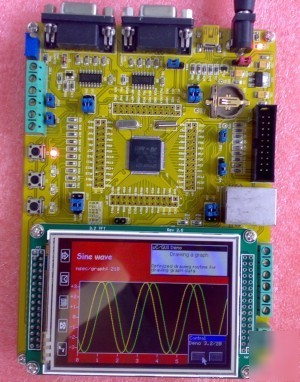

STM32F107VCT6(development board ) with 3.2" TFT-module
The GoldBull Development board is STM32F107VC ARM-based 32-bit MCU with 256 KB Flash of on-chip Flash memory, up to 64 Kbytes of SRAM. The STM32F107VC includes USB OTG, Ethernet, 10 timers, 2 CANs, 2 ADCs, 14 communication interfaces.
With a 2.8-inch TFT true color touch screen module or true color 3.2 inch TFT touch screen module (the user to choose from), FSMC control, color touch module configuration ADS7843(or RSM1843 instead) controller, support for a SD card (SPI mode) can be used to store pictures, in support of AT45DBxxx of a DATA FLASH (can be used for storage)
One 10/100 Ethernet MAC with embedded DMA and IEEE 1588 hardware support,Ethernet PHY connectable using MII and RMII interfaces, the PHY driver chip DP83848
One USB 2.0 On-The-Go (OTG) full speed with embedded OTG PHY with MINI-AB interface
Dual CAN 2.0B interface , the driver chip SN65VHD230
One RS485 interface , the driver chip SP3485
Three keys input, one RESET key,two user programmable keys
Four user programmable LED light
One SD card interface with SPI mode
One I2C memory interface, the standard 24LC02 (EEPROM)
One SPI memory interface, the standard AT45DB161D (DATA FLASH)
Two channels DAC output socket
Power Select jumper to support the external 5V power supply, USB power supply
All I / O port through the standard pitch leads 2.54MM,
